Innostream

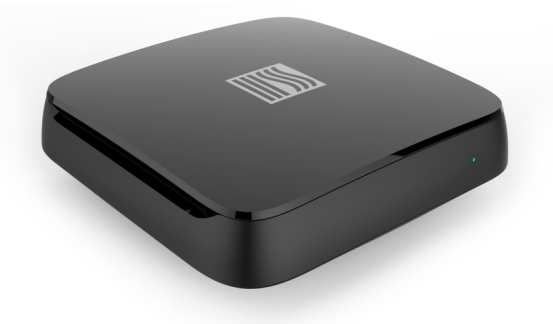

IS-5041W Set Top Box

Building on the success of the IS-5112W, we are now offering a powerful new wireless internet set top box that has a much smaller footprint with numerous added benefits.

Explore the Powerful Features

Innovative Systems’ entry into the STB marketplace was generated by customer demand for additional options as well as increased reliability in Wi-Fi deployments.

Reliable, Efficient Hardware

Existing Middleware Time-Shifted Features
Supports InnoCryption
Set top box with wifi sends a CEC Command to Supported TVs to set Active Input

Specifications

Processor

SoC Amlogic S905X, CPU 64-bit Quad Core ARM Cortex-A53 up to 2.0GHz, DMIPS 14,000, GPU Five-core Mali-450 3D up to 750MHz

Network

Ethernet 10/100 Mbit BASE-T, Wi-Fi 802.11n/ac 2.4/5GHz 2×2

Memory

RAM DDR3 1 GB, Flash eMMC 8Gb

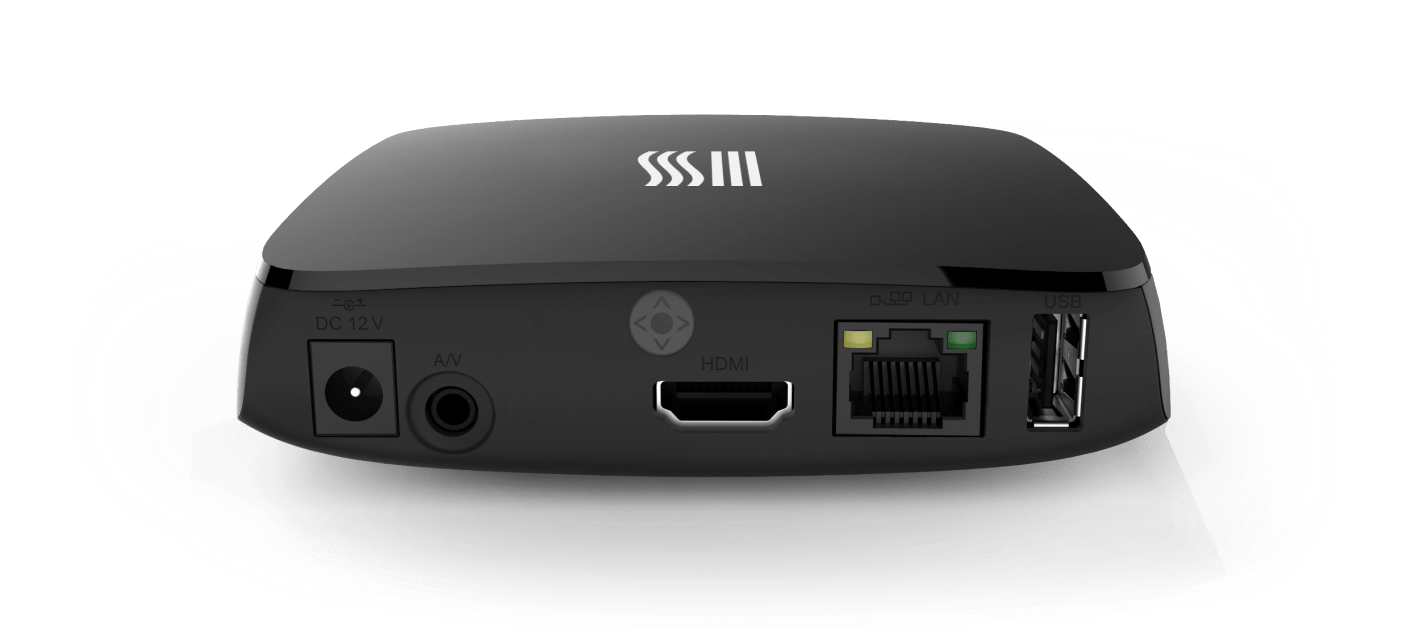

Rear Panel

1 x USB 2.0, 1 x HDMI 2.0a with HDCP 2.2, 1 x AV mini-jack port, 1 x RJ45 Ethernet port, 1 x 12V DC power input

Power Supply

Input – AC 100 – 240V, 1.0A Max, 50Hz – 60Hz; Output – DC 12.0V, 2.5A

With the IS-5041W we can convert our cable TV customers to live streaming and still give them a traditional remote control experience.

Matt Knegendorf Baldwin Lightstream Wisconsin

The wireless option of the Innovative 5041 gives us viable solutions for MDUs, where wiring individual units for TV is not cost effective.

Jayson Keiper Comm1 Iowa

For those who still want a traditional Cable/IPTV experience, the plan is to offer the Innovative Systems IS-5041W STB so customers can still use a traditional remote control.

William Hyatt OzarksGo Arkansas

For more information

Download the Product SheetRead the Case Study
