| Physical Size: | 1.75"H x 17"W x 14.25"D |
| Weight: | 10.5 lbs |
Mounting: |
Brackets available for mounting in a 19", 23" and 26" racks |
| Environmental: |
|
| Operating TemperatureRange | 65 to 100F (18C to 43C) |
| Relative Humidity | 10-90%, non-condensing |
| Power Requirement: | |
| Voltage | -42 to -56 VDC |
| Current | 1.2A typical, 2.0A Max Startup |
| Recommended External Fuse | 3.0A |
| Front Panel LEDs/Indicators: | |
| Power | Green |
| Minor (alarm) | Amber |
| Major (alarm) | Amber |
| Critical (alarm) | Red |

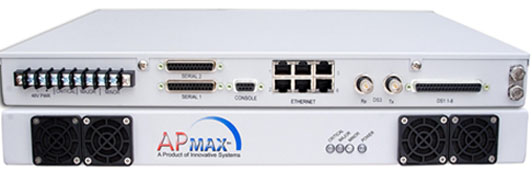

| Connections: | |
| Power and Alarm | 8 Position Terminal Block Ground, -48V, critical, major, minor |
| Serial Ports | Two 25-Pin Female D-sub Connectors (RS232/RS449/V.35 capable) |
| Ethernet | Five RJ-45 Connectors 10/100/1000 One RJ-45 Connector 10/100 |
| DS-3 | Two BNC Connectors (one Tx and one Rx Providing one DS-3) |
| DS-1 | One 37-Pin Female Connector Providing Eight DS-1s |
...More Info
APMAX Hardware Specifications
