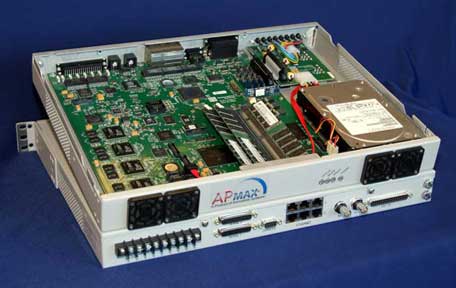

Designed Specifically for Communications Service Providers, APMAX is the next generation of hardware developed by Innovative Systems. The APMAX is built using the latest technology in both hardware and software design for carrier-grade performance you would expect in central office equipment.

IP in the network is becoming a reality. APMAX provides an IMS based platform that will continue to grow and evolve for many years to come.

The APMAX's low power consumption makes it the industry's greenest Application Server and is designed with the very latest in chip technology supporting multiple interfaces on each APMAX (normally deployed in pairs).

TDM and IP Interfaces
APMAX supports not only the TDM interfaces of legacy switches, but also the next generation IP interfaces. A single APMAX system can interface with legacy switches on a TDM, AIN and ISUP basis while simultaneously interfacing to next generation switches on an IP basis using SIP, RTP, UDP, TCP, HTTP and HTTPS.

TDM Interfaces (per system)
16 DS-1 (384 DS-0s)
Two DS-3 (1344 DS-0s)
Four RS232/449/V.35
MF and DTMF
SS7 (ISUP, TCAP, AIN)

IP Interfaces (per system)
Eight Ports - IP - SIP, FTP, TFTP, RTP, HTTP, HTTPS, XML, SOAP ...

Web Interface
Web Server functionality is built into the APMAX. The APMAX system consists of two units providing redundant web servers.

Two Serial Ports (for SS7 or Administration)

Class Announcements
The APMAX provides announcements for the Nortel CS-1500.
